8 1/2"IADC637 Rotary blast hole drill bits

China 8 1/2"IADC637 Rotary blast hole drill bits supplier

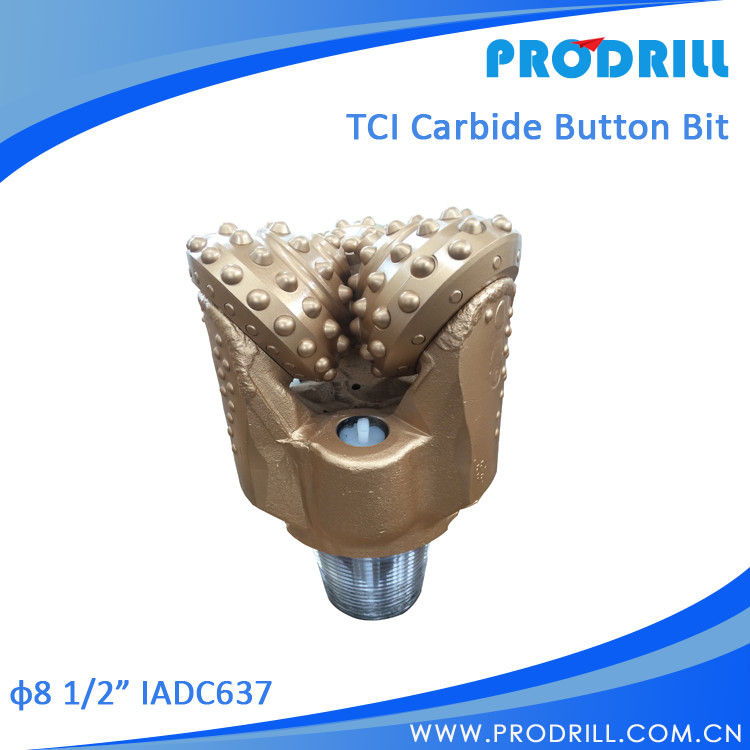

Large Image :  8 1/2"IADC637 Rotary blast hole drill bits

Product Details:

Place of Origin: China
Brand Name: Prodrill
Certification: ISO:9001, CE
Model Number: IADC 517 127 637

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pcs
Price: $500~$10000/pcs
Packaging Details: Wooden box or steel case
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union etc.
Supply Ability: 50000Pcs/Month
Contact Now
Detailed Product Description

Sealed Bearing Structure:Air cooling roller bearing package. Balls lock the conewhich reduces the probability of cone-dropping to minimum.

Main Type Available:Size: 5 7/8",6",6 1/2",7 1/2",7 7/8",8 1/2",9 1/2",9 5/8",9 7/8",12 1/4",14 3/4",17 1/2", etc.

IADC Code:1-- Series, 2-- Series, 3—Series



Non-Sealed Roller Bearing Steel Tooth Bit

Cutting Structure: The wear-resistance of teeth is enhanced with premium tungsten carbide hard facing on the tooth surfaces.

Bearing Structure: on-sealed roller bearing. Drilling fluid can enter the bearing directly for cooling; Balls lock the cone which reduces the probability of cone Cropping to minimum

Main Type Available: Size: 2 3/8",3",3 5/8:",3 7/8",4",4 1/2",4 5/8",4 3/4",6",6 1/2",7 1/2",7 7/8",8 1/2",9 1/2",9 5/8",9 7/8",10 5/8",12 1/4", 17 1/2",etc.

 IADC Code:1-- Series,2-- Series,3-- Series



Metaled sealed Journal Bearing Steel Tooth Bit

Main Type Available: Size: 2 3/8",3",3 5/8:",3 7/8",4",4 1/2",4 5/8",4 3/4",6",6 1/2",7 1/2", 7 7/8",8 1/2",9 1/2" ,9 5/8",9 7/8",10 5/8",12 1/4", 17 1/2",etc.

IADC Code:                      1-- Series,2-- Series,3-- Series

IADC

WOB

(KN/mm)

RPM

(r/min)

Applicable Formations

437/447/435

0.35~0.9

240~70

Very soft formations with low compressive strength and high drillability,

such as clay, mudstone, chalk, gypsum, salt, soft limestone, etc.

517/527/515

0.35~1.0

220~60

Soft formations with low compressive strength and high drillability,

such as mudstone, gypsum, salt, soft limestone, etc.

537/547/535

 0.45~1.0

220~50

Soft to medium formations with low compressive strength,

such as medium, soft shale, medium soft limestone,

medium soft sandstone, medium formation with harder and abrasive interbeds, etc.

617/615

0.45~1.1

200~50

Medium hard formation with high compress strength,

such as hard shale, limestone, sandstone, dolomite. etc

637/635

  0.5~1.1

180~40

Hard formations with high compressive strength,

such as sandstone, limestone, dolomite ,hard gypsum, marble, etc.

Note: The upper limits of WOB and RPM in above table should not be used simultaneously.
