Product Details:
Payment & Shipping Terms:
|
| Material: | Tungsten Carbide, High Manganese Steel | Diameter: | 32mm, 34mm, 36mm, 38mm, |
|---|---|---|---|
| Carbide Grade: | YG15 KO | Steel Grade: | 95CrMo Equivalent ~ SANDBAR 20 Or C253, 55SiMnMo |
| Feather: | Fast Penetratioin Rate, Long Life Meter, | Shank Size: | 19*108, 22*108, 25*159mm |

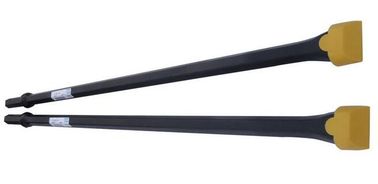

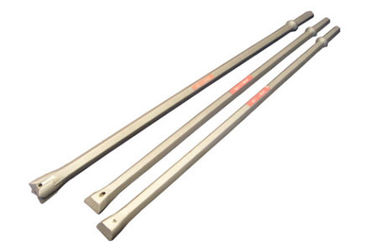

ProDrill provides a variety of integral and plug hole rods in a full range of lengths and steel hex diameters for all of your hand-held pneumatic drilling needs.
On request, we can supply integral and plug hole rods to custom lengths and gauges. At ProDrill, we use the finest raw materials available, including premium steel and top quality carbide.

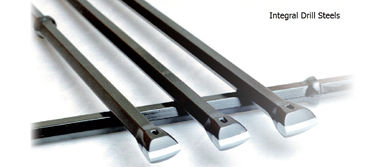

Integral drill steels technical specification as follows :
|
22mm (7/8’’) |
11 | 800 | 2’71/2’’ | 34 | 1 11/32 | 3.0 |
| 1600 | 5’3’’ | 33 | 1 3/16 | 5.4 | ||
| 2400 | 7’101/2’’ | 32 | 1 1/4 | 7.9 | ||
| 3200 | 10’6’’ | 31 | 1 7/32 | 10.3 | ||
| 4000 | 13’11/2’’ | 30 | 1 3/16 | 12.6 | ||
| 4800 | 15’9’’ | 29 | 1 5/32 | 15.1 | ||
| 5600 | 18’41/2’’ | 28 | 1 1/8 | 17.6 | ||
| 6400 | 21’ | 27 | 1 1/16 | 19.9 | ||
| 7200 | 23’71/2’’ | 26 | 1 1/32 | 22.3 | ||
| 12 | 800 | 2’71/2’’ | 40 | 1 9/16 | 3.0 | |
| 1600 | 5’3’’ | 39 | 1 17/32 | 5.4 | ||
| 2400 | 7’101/2’’ | 38 | 1 1/2 | 7.8 | ||
| 3200 | 10’6’’ | 37 | 1 15/32 | 10.3 | ||
| 4000 | 13’11/2’’ | 36 | 1 13/32 | 12.6 | ||
| 4800 | 15’9’’ | 35 | 1 3/8 | 15.1 | ||
| 5600 | 18’41/2’’ | 34 | 1 11/32 | 17.6 | ||
| 6400 | 21’ | 33 | 1 3/16 | 19.8 | ||
| 7200 | 23’71/2’’ | 32 | 1 1/4 | 22.2 | ||
| 8000 | 26’3’’ | 31 | 1 7/32 | 24.6 | ||
| 13 | 400 | 1’33/4’’ | 34 | 1 11/32 | 1.7 | |
| 800 | 2’71/2’’ | 33 | 1 3/16 | 3.0 | ||
| 1200 | 3’111/4’’ | 32 | 1 1/4 | 4.2 | ||
| 1600 | 5’3’’ | 31 | 1 7/32 | 5.3 | ||
| 2000 | 6’63/4’’ | 30 | 1 3/16 | 6.5 | ||
| 16 | 600 | 1’115/8’’ | 35 | 1 3/8 | 2.4 | |
| 1200 | 3’111/4’’ | 34 | 1 11/32 | 4.2 | ||
| 1800 | 5’107/8’’ | 33 | 1 3/16 | 6.1 | ||
| 2400 | 7’101/2’’ | 32 | 1 1/4 | 7.9 | ||
| 17 | 600 | 1’115/8’’ | 41 | 1 5/8 | 2.4 | |
| 1200 | 3’111/4’’ | 40 | 1 9/16 | 4.3 | ||
| 1800 | 5’107/8’’ | 39 | 1 17/32 | 6.1 | ||
| 2400 | 7’101/2’’ | 38 | 1 1/2 | 7.8 |
