|Type:||Drill Bit||Machine Type:||Drilling Tool|

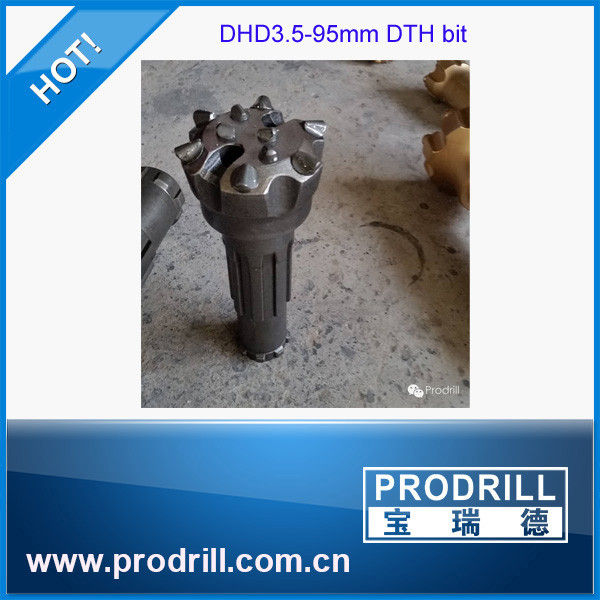

The characteristics of high air pressure DTH Button Bit:
1.Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to inner structure of HD series DTH hammer designed according to newest rock drilling theory.
2.Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.
3.Low problem rate and easy to maintenance due to simple , reliable and easy assemble and disassemble inner structure of hammer.
4.Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.
5.Interchangeable with DTH bit and dill pipe manufactured by Atlas copco and Ingersoll-rand.
Bit face shape selection:
1. Drop Center Bit
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.
2. Concave Face
The all-round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.
3. Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
4. Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
5. Flat Face Bit
This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.
Carbide button shape selection:
1. Domed/Round Button
2. Parabolic/Semi-Ballistic Buttons
3. Ballistic Button
4. Sharp Button
5. Flat Button
The Other Information you may be concerned about the order of DTH Hammer Bits:
1). Payment Term: T/T, L/C , D/P Western Union or others.
2). Delivery Time: Within 5days after receipt of your confirmation, if we have stocks.
And it would take 10~20days according Production Schedule
3). Package: Standard Exporting Package, Wooden Case or as your choice.
4). Shippment: Less than 45kgs, we suggest to ship by International Courier, like DHL , UPS , TNT , FedEx and so on . Door to door service. More than 45kgs, we will ship by air , fast and safe .Up 100kgs, the goods will be shipped by Sea.
Offering List of other rock drilling tools supplier:
A) Underground Bolting & Scaling Equipment
B) Blast Furnace Tapping Tools
C) Tube Drilling Tools
D) Hydraulic Drifter
E) Pneumatic Rock Drills
F) Rock Drilling Tools for Blast Hole Drilling Digs
G) Shank Adaptor
H) Threaded Tube Drilling Tools
I) Drifting and Tunneling Tools
Prodrill based in Xiamen, Beijing of China, is a specialized manufactuers and supplier of Rock Drilling Tools, Constructional and Quarrying consumables and accessories for quarrying, mining and construction with 10 years experiences, Pro Drill products are divided into four major categories:
Rock Tools, Drill steels and carbide tipped percussive bits and other accessories for Percussive Top hammer, Jack hammer, and DTH drill rig and other drilling machine, which are used to drilling blast holes in quarries, mines, and construction projects, such as Button bits, DTH bits ,hole opener bit, Reaming Bit, Drilling Rods , Shank Adaptor, Coupling, bit carbide Grinder, Grinding wheels, Grinding cups, overburden drilling system ODEX casing,Concentric casing , Symmetric casing, , R C core drilling tools , PDC drill bits, YG15 KO34 tungsten carbide,
Demolition Tools, Consumables and tools for the demolition or cutting cocrete and stone, such as High Range Soundless Cracking Agent ( HSCA ), Hydraulic Rock Splitter, Excavatored Mounted Super Wedges, Pistoned powdered Rock Spliiter, G10, G15 pneumatic splitter, TBP60, TBP90 paving breaker, hydraulic breaker .. etc.
Stone tools, Quarrying tools and stone processing consumales which are used by stone factories and quarries, such as Stone wedges and shims, hydraulic Jack, Air pushing bag, Steel Water Bag, Steel Grits, Segment, and Diamond Blades. etc.
Rock Drills, Pneuamtic Rock drills with hand hold , air leg, hydraulic rock drill crawler type which are used to drill blast holes in quarries, mines, and construction projects, like Y24, YT28,PD-Y58, another what a more for excavator, we can produce rock drilling drifter attachment to mount in excavator for drilling blasting hole in quarries, mines. this type of excavator mounted rock drills working is same or replacement with crawler hydraulic rock drills
Prodrilldrilling tools always committed to provide low cost rock drilling tools, high efficiency drilling tools, energy saving and environmental products for domestic and international clients. We are confident for our products and technology and we are always improving our product quality and service to satisfy our clients' various requirement.
The information you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
1). Our sales team will response for your question within 24 hours (Holidays Excluded)
2). Technical Support will be available in any time
3). Free replacement will provide once the failure confirmed caused by our product quality
|Shank style||Diameter in mm||Flushing holes No.||Gauge buttons||Face buttons||Approx.weight|
