|Type:||Drill Bit||Machine Type:||Drilling Tool|
It is a kind of high air pressure DTH Hammer without foot valve and without valve, our newest design. It is also one of the most advanced DTH Hammers in the world.
We manufacture DTH Hammers in different sizes ranging from 3 to 12. These hammers are made corresponding to Drilling Bits to carry out prevalent objectives. These hammers are used in various down the hole operations like bench Drilling. These are valve less hammers with optimized air cycle frequency. These are heavy duty hammers that well at greater depths demanding less air usage, delivering minimum performance loss. We offer IR hammer, DHD3.5, DHD340a, DHD360, DHD380, COP and QL hammer. The optimum range of hole size for blast drilling with DTH is 90mm to 254mm, smaller blast holes are generally drilled using top hammer, and larger holes generally use rotary machines. Our hammer like COP and QL are known fort heir reliability and longevity.
1-12 inch middle-low/high air pressure DTH hammer & bit
Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit
Shank adapter, coupling sleeves and all kinds of adapters
|Specification:||Weight (kg)||External Diameter (mm)||Connection thread||Hole rang (mm)||Impact rate||Recommended rotation speed|

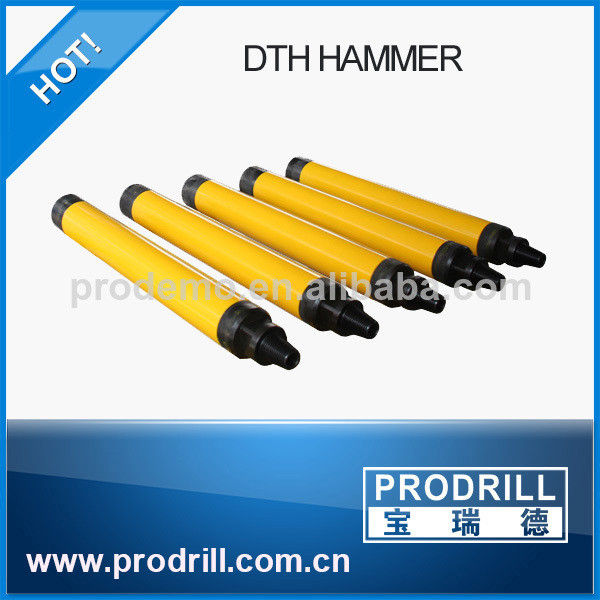

3 inch DTH hammer
|24.5||81||API 2 3/8" Reg||90~110||28Hz (at 17 bar)||28 r/min|
4 inch DTH hammer
|39.2||99||API 2 3/8" Reg||110~150||27Hz (at 17 bar)||25~40 r/min|
5 inch DTH hammer
|71.5||125||API 2 3/8" or API 3 1/2" Reg||135~165||25Hz (at 17 bar)||20~30 r/min|
6 inch DTH hammer
|98||142||API 3 1/2" Reg||152~216||23Hz (at 17 bar)||15~25 r/min|
8 inch DTH hammer
|188||180||API 4 1/2" Reg||203~305||20Hz (at 17 bar)||15~|
Compared with the oversea brands, our advantages are bellowing:
A. Our products can match over 95% against the original products
B. Price are competitive against the famous brands and best quality against the small factory
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
