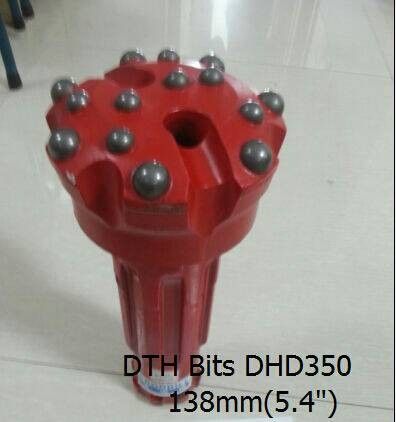

DTH Bits DHD350-138mm

China DTH Bits DHD350-138mm supplier

Large Image :  DTH Bits DHD350-138mm

Product Details:

Place of Origin: China
Brand Name: PRODRILL
Certification: ISO:9001
Model Number: DTH Bits DHD350-138mm

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pcs
Price: $1~$300/pcs
Packaging Details: WOODEN BOX
Delivery Time: 10-15 DAYS
Payment Terms: T/T, L/C,western union etc.
Supply Ability: 5000Pcs/Month
Contact Now
Detailed Product Description
Type: Drill Bit Machine Type: Drilling Tool
Material: Carbide Processing Type: Forging
Use: Coal Mining

DTH Drill Bit, DTH bits, DTH Button bits BR2 - 90mm(3.5") in diameter range between 76mm - 90mm

Description:

(1) Made from premium quality nickel-alloy steel 25SiMnCrNi2MoVA for increased durability and wear characteristics, and YK 05 tungsten carbide as same grade as internationally well-known brand.
(2) Apply "hot (thermal) -insertion" processing procedure to insert the buttons as same as internationally well-known brand,
(4) Entire CNC processing procedure ensure the quality consistency and reliable.
(5) Military grade requirements of heat-treatment guarantee durability, Specific heat treatment standards and special “stress relief” processes ensure consistent performance.
(6) Designed for maximum performance and hole cleaning ability and high penetration rate.

Our bits are interchangeable with Atlas Copco’s COP32 34 44 54 64 84, Ingersoll-Rand ‘s DHD3.5,DHD3.5HD, DHD 340A , DHD350R, DHD 360, DHD380 QL40, QL50 ,

QL60, QL80.NUMA100, NUMA120, MISSION60,ect.

Matching the insert to the job requirements is essential in achieving the desired results. Each of the following buttons is

ideal for different ground conditions, abrasion levels, PSIs and penetration levels. In general, the larger the number of gauge

buttons the better overall performance, especially in hard rock.



Specification of dth hammer button bits:

Diameter: (mm)

1-2 inch low pressure DTH bits

64/70/76/80/82/90

3 inch high Air pressure DHT bits

85 / 90 / 95 / 100 / 105

4 inch high Air pressure DHT bits

105 / 110 / 115 / 120 / 127

5 inch high Air pressure DHT bits

133 / 140 / 146 / 152 / 165

6 inch high Air pressure DHT bits

152 / 165 / 178 / 190 / 203

8 inch high Air pressure DHT bits

195 / 203 / 216 / 254 / 305

10, 12 inch high Air pressure DTH bits

254/305/318/330/356/381
