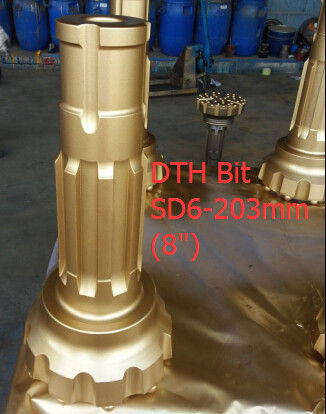

DTH Bit SD6 - 203mm( 8" )
DTH Drill Bit, DTH bits, DTH button bits SD6-203mm ( 8 inch high Air pressure DHT bits )
Description:
(1) Made from premium quality nickelalloy steel 25SiMnCrNi2MoVA for increased durability and wear characteristics, and YK 05 tungsten carbide as same grade as internationally well-known brand.
(2) Apply "hot (thermal) insertion" processing procedure to insert the buttons as same as internationally well-known brand.
(4) Entire CNC processing procedure ensure the quality consistency and reliable.
(5) Military grade requirements of heattreatment guarantee durability, Specific heat treatment standards and special “stress relief” processes ensure consistent performance.
(6) Designed for maximum performance and hole cleaning ability and high penetration rate.
Our bits are interchangeable with Atlas Copco’s COP32 34 44 54 64 84, Ingersoll-Rand ‘s DHD3.5,DHD3.5HD, DHD 340A , DHD350R, DHD 360, DHD380 QL40, QL50 ,
QL60, QL80.NUMA100, NUMA120, MISSION60,ect.
Matching the insert to the job requirements is essential in achieving the desired results. Each of the following buttons isideal for different ground conditions, abrasion levels, PSIs and penetration levels. In general, the larger the number of gauge buttons the better overall performance, especially in hard rock.
|
Specification of dth hammer button bits: |
Diameter: (mm) |
|
1-2 inch low pressure DTH bits |
64/70/76/80/82/90 |
|
3 inch high Air pressure DHT bits |
85 / 90 / 95 / 100 / 105 |
|
4 inch high Air pressure DHT bits |
105 / 110 / 115 / 120 / 127 |
|
5 inch high Air pressure DHT bits |
133 / 140 / 146 / 152 / 165 |
|
6 inch high Air pressure DHT bits |
152 / 165 / 178 / 190 / 203 |
|
8 inch high Air pressure DHT bits |
195 / 203 / 216 / 254 / 305 |
|
10, 12 inch high Air pressure DTH bits |
254/305/318/330/356/381 |
About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
PRODRILL has a comprehensive supply of Rock tools for world leading top hammer manufacturers like Atlas Copco, , Ingersoll-Rand etc. Such as: Taper / Percussive Bits and Rod, DTH hammer, Bit & rod, RC hammer, Bit & Rod, ODEX, Symmetric, Concentric overburden Casing System
