Product Details:
Payment & Shipping Terms:
|
| Type: | Drill Bit | Machine Type: | Drilling Tool |
|---|---|---|---|
| Material: | Carbide | Processing Type: | Forging |
| Use: | Demolition Rock |
We are a professional manufacturer specialized in the hydraulic breaker with superior quality, We also supply other concerned hydraulic spare parts including main body assembly, the back head, cylinder assembly, front head, piston, reversing valve, oil seal retainer and etc. Our products can be used for Komatsu, Hitachi, Kobelco, Kato, Sumitomo, Hyundai, Volvo excavator, etc.
1) use the highest strength material to get better wearing resistance.
(2)Easy maintenance, prolonged life.
(3) we have accumulated sales of 20, 000 units, rich maintenance experience.
(4)The warranty period is 1 year.
Specification:
| TRB680 | TRB850 | TRB1000 | TRB1350 | TRB1400 | TRB1550 | TRB1650 | TRB1750 | |
|
Weight (kg) |
258 | 557 | 753 | 1653 | 1774 | 2569 | 2752 | 3912 |
|
Length (mm) |
1415 | 1735 | 1994 | 2367 | 2414 | 2760 | 2816 | 3176 |
|
Required oil Flow (L/min) |
40~70 | 60~100 | 80~110 | 120~150 | 130~1800 | 180~240 | 200~260 | 210~290 |
|
Working pressure (kgf/cm2) |
110~140 | 130~1640 | 150~170 | 160~180 | 160~180 | 160~180 | 160~180 | 160~180 |
| impact rate | 500~900 | 400~800 | 350~700 | 400~800 | 350~500 | 300~450 | 250~400 | 200~350 |
|
Hose Diameter (In) |
0.5 | 0.75 | 0.75 | 1 | 1 | 1 | 1.2 | 1.2 |
| Chisel Diameter (mm) | 68 | 85 | 100 | 135 | 140 | 155 | 165 | 175 |
|
Chisel Length (mm) |
700 | 900 | 1000 | 1300 | 1300 | 1500 | 1600 | 1600 |
|
Applicate Exvacator (Ton) |
4~7 | 7~14 | 10~15 | 18~26 | 18~26 | 28~35 | 30~45 | 40~55 |

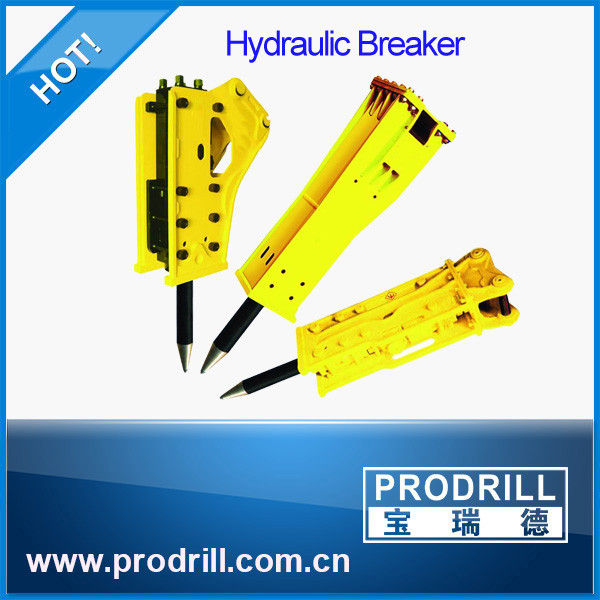

Exvacator Mounted Hydraulic Rock Breaker
Terms & Conditions of Ordering:
1. Payment Terms: T/T (Telegraphic Transfer) or Western Union
2. Delivery Term:
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Transportation:
Sample order: We suggest Courier express or by air
Bulk order: We suggest by air or by sea.
4. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded)
C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.
About Us:
1. Our factory has been specialized in manufacturing rock drilling tools and spare parts for over 10 years.
2. Electro-hydraulic forging hammers for forging process, Italian atmosphere-controllable sealed quench furnace for heat treatment, CNC machines for accurate finishing
3. Our technician has more than 13 year's professional working experience.
4. Drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
Working Environment:
Our main products are as below:
Construction & Mining & Rock Drill Tools:
A. DTH Hammer and Bit (2''-24''), Overburden Drilling System; RC System.
B. Top Hammer (drill hole dia.: 33 ~ 152mm).
1) Thread Tools (Button Bits, Rod, Coupling, Shank Adaptor): (R25/28/32/38, T38/45/51, ST58,GT60).
2) High Rang Soundless Cracking Agent (dia. 40 ~ 50mm).
Quarrying Drill Tools (drill hole dia.: 17 ~ 45mm).
1) Taper Drill Tools (Bit: button/chisel; Rod: Tapered/Integral), Carbide Tips, Segment, Grinding Wheel, Grinder.
3) Pneumatic Rock Drill: Hand-held (Y24, TY24C), Air leg (YT28) and Gasoline (YN27J).
4) Expansive Mortar (dia. 30 ~ 35mm); Hydraulic Rock Splitter PD40-250, Aluminum Cylinder.
5) Air Pushing Bag, Water Bag; Pneumatica Splitter G10, Hand Splitter, etc.
6) Hydraulic Breaker hammer, Paving breaker TPB40, 60, 90 for rock or concrete demolition.
7) PD28, PD45, PD90, PD115/HC20 Excavator mounted rock drilling.
