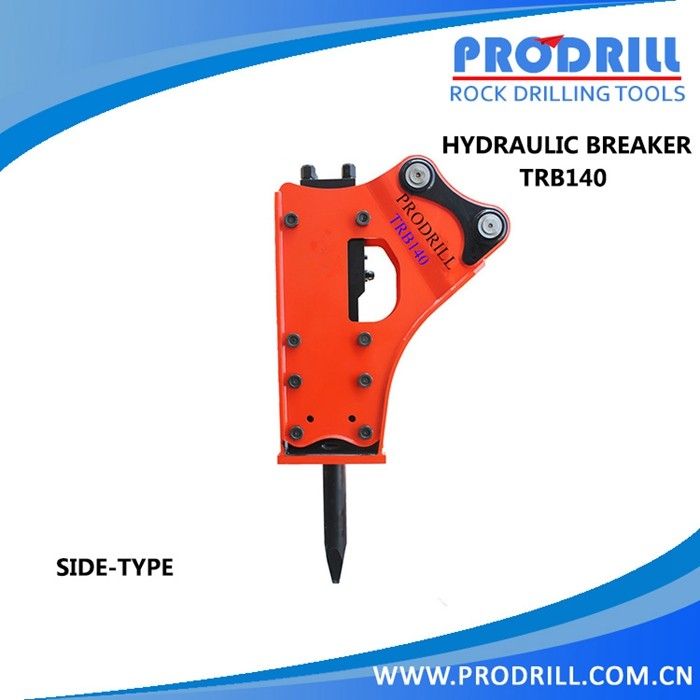

hydraulic breaker hammer, demolition hammer for Kobelco, Volvo excavator

China hydraulic breaker hammer, demolition hammer for Kobelco, Volvo excavator supplier

Large Image :  hydraulic breaker hammer, demolition hammer for Kobelco, Volvo excavator

Product Details:

Place of Origin: China
Brand Name: PRODRILL
Certification: ISO:9001, CE
Model Number: TRB68, TRB85,TRB100, TRB135,TRB140 ,TRB155,TRB165 ,TRB175

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pcs
Price: $100~$1000/pcs
Packaging Details: Wooden box
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union etc.
Supply Ability: 1000Pcs/Month
Contact Now
Detailed Product Description

We are a professional manufacturer specialized in the hydraulic breaker with superior quality, We also supply other concerned hydraulic spare parts including main body assembly, the back head, cylinder assembly, front head, piston, reversing valve, oil seal retainer and etc. Our products can be used for Komatsu, Hitachi, Kobelco, Kato, Sumitomo, Hyundai, Volvo excavator, etc.
1) use the highest strength material to get better wearing resistance.
(2)Easy maintenance, prolonged life.
(3) we have accumulated sales of 20, 000 units, rich maintenance experience.
(4)The warranty period is 1 year.

Specification:

  TRB68 TRB85 TRB100 TRB135 TRB140 TRB155 TRB165 TRB175
Weight
(kg)
258 557 753 1653 1774 2569 2752 3912
Length
(mm)
1415 1735 1994 2367 2414 2760 2816 3176
Required oil Flow
(L/min)
40~70 60~100 80~110 120~150 130~1800 180~240 200~260 210~290
Working pressure
(kgf/cm2)
110~140 130~1640 150~170 160~180 160~180 160~180 160~180 160~180
impact rate 500~900 400~800 350~700 400~800 350~500 300~450 250~400 200~350
Hose Diameter
(In)
0.5 0.75 0.75 1 1 1 1.2 1.2
Chisel Diameter (mm) 68 85 100 135 140 155 165 175
Chisel Length
(mm)
700 900 1000 1300 1300 1500 1600 1600
Applicate Exvacator
(Ton)
4~7 7~14 10~15 18~26 18~26 28~35 30~45 40~55



Advantages:

1.Piston: the claim rate 0.1% for one year, The production line is CNC maching centre from Germany, Japan and South Korea.
2. Main body: For front head, back head and cylinder, we all use 20 CrMo, Adopt the most advanced Austrian heat treatment production line also with
carburizing process over 36 hours, and depth of 1.8mm, while for other supplier, they use 40 CrMo, and use normal heat treatment equipment, only just need
5 hours heat treament process.
3. Bracket : Our materials is Q345 ( 16Mn), and obviously betten than other suppliers'Q235.
4. Control Valve :  Also with Austrian heat treatment process, which is directly imported from South korea
5. Seal kit:   we use NOK brand, imported from Japan directly,
6. Spare parts :  four our through bolt, from cover, inner bush and tools, we all use 42CrMo, this steel raw materials is with betten strength and goood resistance
7. Robust design, durable parts and experienced engineers have enabled our hydraulic breakers to be POWERFUL in Striking, STABLE in Performance
    and DURABLE in Lifetime.
8.  Annual manufacturing capacity is 10 000, enjoy great popularity in the Middle East, India, Russia, Brazil, Mexico and so on.
9. OEM service offered, Technical Help to Importers, Design Service Offered, Buyer Label Offered
10. Quick delivery time: 1-2 weeks after deposit arrival.

About Us:
1. Our factory has been specialized in manufacturing rock drilling tools and spare parts for over 10 years.
2. Electro-hydraulic forging hammers for forging process, Italian atmosphere-controllable sealed quench furnace for heat treatment, CNC machines for accurate finishing
3. Our technician has more than 13 year's professional working experience.
4. Drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc



Terms & Conditions of Ordering:


1. Payment Terms: T/T (Telegraphic Transfer) or Western Union

2. Delivery Term:

Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.

3. Transportation:
Sample order: We suggest Courier express or by air
Bulk order: We suggest by air or by sea.
4. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded)
C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.
