Hydraulic Rock Breaker Hammer for Excavator

Good quality Tapered Rod for sales
Prodrill Products are suitable for us, we do almost 10 years business. You can test the products

—— Mr Moises

I'm Online Chat Now

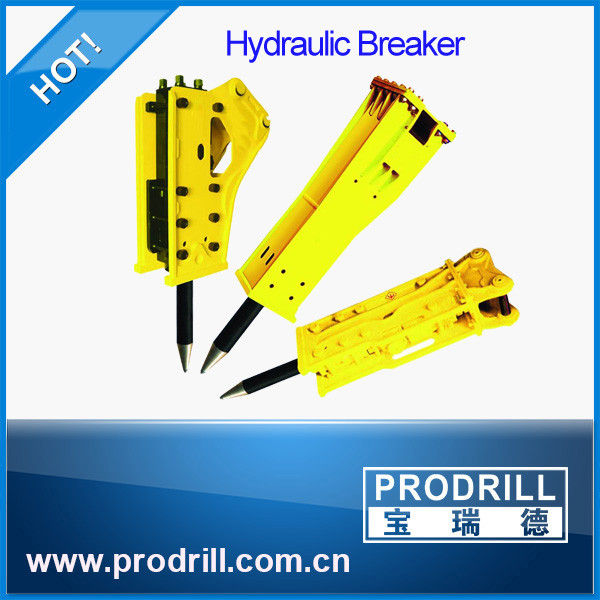

Hydraulic Rock Breaker Hammer for Excavator

China Hydraulic Rock Breaker Hammer for Excavator supplier

Large Image :  Hydraulic Rock Breaker Hammer for Excavator

Product Details:

Place of Origin: China
Brand Name: PRODRILL
Certification: ISO:9001, CE
Model Number: TRB680

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pcs
Price: US $1~1000
Packaging Details: Wooden box
Delivery Time: 3 to 15 days
Payment Terms: T/T, L/C, Western Union etc.
Supply Ability: 30000 pcs per month
Contact Now
Detailed Product Description
Type: Drill Bit Machine Type: Drilling Tool
Material: Carbide Processing Type: Forging
Use: Ore Mining

We are a professional manufacturer specialized in the hydraulic breaker with superior quality, We also supply other concerned hydraulic spare parts including main body assembly, the back head, cylinder assembly, front head, piston, reversing valve, oil seal retainer and etc. Our products can be used for Komatsu, Hitachi, Kobelco, Kato, Sumitomo, Hyundai, Volvo excavator, etc.
1) use the highest strength material to get better wearing resistance.
(2)Easy maintenance, prolonged life.
(3) we have accumulated sales of 20, 000 units, rich maintenance experience.
(4)The warranty period is 1 year.

Specification:

  TRB680 TRB850 TRB1000 TRB1350 TRB1400 TRB1550 TRB1650 TRB1750
Weight
(kg)
258 557 753 1653 1774 2569 2752 3912
Length
(mm)
1415 1735 1994 2367 2414 2760 2816 3176
Required oil Flow
(L/min)
40~70 60~100 80~110 120~150 130~1800 180~240 200~260 210~290
Working pressure
(kgf/cm2)
110~140 130~1640 150~170 160~180 160~180 160~180 160~180 160~180
impact rate 500~900 400~800 350~700 400~800 350~500 300~450 250~400 200~350
Hose Diameter
(In)
0.5 0.75 0.75 1 1 1 1.2 1.2
Chisel Diameter (mm) 68 85 100 135 140 155 165 175
Chisel Length
(mm)
700 900 1000 1300 1300 1500 1600 1600
Applicate Exvacator
(Ton)
4~7 7~14 10~15 18~26 18~26 28~35 30~45 40~55


Exvacator Mounted Hydraulic Rock Breaker

Terms & Conditions of Ordering:
1. Payment Terms: T/T (Telegraphic Transfer) or Western Union
2. Delivery Term:
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Transportation:
Sample order: We suggest Courier express or by air
Bulk order: We suggest by air or by sea.
4. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded)
C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.
About Us:
1. Our factory has been specialized in manufacturing rock drilling tools and spare parts for over 10 years.
2. Electro-hydraulic forging hammers for forging process, Italian atmosphere-controllable sealed quench furnace for heat treatment, CNC machines for accurate finishing
3. Our technician has more than 13 year's professional working experience.
4. Drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
Working Environment:

Exhibitions:

Certifications:
ISO: 9001 Xiamen Prodrill Equipment Co., Ltd

Prodrill is not only the experts in the Import & export field but the leader on Mining, Construction equipments and rock drilling tools. Prodrill has a comprehensive supply of Rock tools for world leading top hammer manufacturers like Atlas Copco, Ingersoll-Rand etc. Such as: Taper /Percussive Bits and Rod, DTH hammer, Bit & rod, RC hammer, Bit & Rod, ODEX, Symmetric, Concentric overburden Casing System…. Westock everything from the hard to find to the next to impossible to findpieces. If you can't seem to find you're looking for anywhere else, try us. Youwill be surprised. We also maintain a fleet of quarrying tools and consumables.

High quality is our obligation, Great service is our mission,
