Pd350 Hydraulic Rock Splitter for Demolition

Good quality Tapered Rod for sales
Prodrill Products are suitable for us, we do almost 10 years business. You can test the products

—— Mr Moises

I'm Online Chat Now

Pd350 Hydraulic Rock Splitter for Demolition

China Pd350 Hydraulic Rock Splitter for Demolition supplier
Pd350 Hydraulic Rock Splitter for Demolition supplier Pd350 Hydraulic Rock Splitter for Demolition supplier

Large Image :  Pd350 Hydraulic Rock Splitter for Demolition

Product Details:

Place of Origin: China
Brand Name: PRODRILL
Certification: ISO:9001
Model Number: PD250. PD350, PD450

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $1~$1000/set
Packaging Details: Wooden box
Delivery Time: 10 to 15 days
Payment Terms: T/T, L/C, Western Union etc.
Supply Ability: 100set/Month
Contact Now
Detailed Product Description

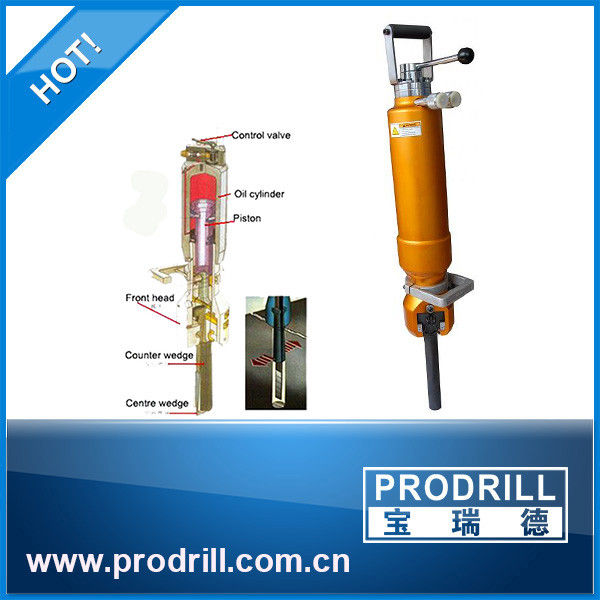

Prodrill hydraulic rock /concrete splitter is a machine which is used in mining work of construction stones, the secondary breaking of large rocks and the partial or integral removing concrete facilities. It can split the objects into many pieces in the natural cleft surface.
Advantages:
Hydraulic stone & concrete splitter is one of the efficient, safest and easiest ways of mining,dimensional stone quarrying,demolition & removing mass and reinforced concrete.
New model no splitter standard configuration is 3 aluminum cylinder with centre wedge and one counter wedge for each, and plus diesel motor engine, pump station, and high pressure hose etc.

All kinds of natural stones, rock, granite, marble mining & quarrying
Machine bases fracture
Bridge columns demolition
Reinforced concrete structures removal
Mass foundations splitting
Controlled demolition of pillars, concrete and walls where heavy equipment is impractical
Staircase removal
Premises that may be in continual use such as hospitals, factories, offices and hotels
removing redundant reinforced concrete structures, concrete machine beds and plinths, mass filled concrete etc.
Underwater demolition
Demolition in a restricted space
Tunnel work
Trench excavation

Hydraulic stone & concrete splitter is one of the efficient, safest and easiest ways of mining, dimensional stone quarrying, demolition & removing mass and reinforced concrete.
New model no splitter standard configuration is 3 aluminum cylinder with centre wedge and one counter wedge for each, and plus diesel motor engine, pump station, and high pressure hose etc.

Model Number Hole Diameter (mm) Counter Wedge Dia(mm) Counter Wedge Length (mm) Min hole depth (mm) Actually splitting force(ton) Weight(kg) Length Cylinder Body(mm) Splitting Distance
PD250 42-44 40 250 550 450 34 700 10-18
PD350 44-46 42 350 650 450 35 700 10-18
PD450 46-48 44 450 750 450 36 700 10-18




Main Products:
1-12 inch middle-low/high air pressure DTH hammers & bits
Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45,T51, ST58,GT60)
Extension Rod, M/F Rod, M/m Rod, Drift Rod,
Shank adapter, coupling sleeves and all kinds of adapters

Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory

About Us:
1.    Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2.    We have advanced technology and equipment.
3.    Our technician has more than 13 year's professional working experience.
4.    Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
