Pneumatic air leg rock drill

China Pneumatic air leg rock drill supplier
Pneumatic air leg rock drill supplier Pneumatic air leg rock drill supplier Pneumatic air leg rock drill supplier Pneumatic air leg rock drill supplier

Large Image :  Pneumatic air leg rock drill

Product Details:

Place of Origin: China
Brand Name: PRODRILL
Certification: CE, ISO:9001
Model Number: YT27

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: $300/set
Packaging Details: Wooden box
Delivery Time: 10-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description

1. Pneumatic rock drilling machine
Y6, Y19A, Y20, Y24, TY24C, Y26 (Hand Operated);
YT24, YT27, YT28, YT29A (Air leg).

This type rock drills use compressed air as power, mainly used in construction sites, various types of mines, tunnel, railways, water conservancy construction and national defense construction areas for drilling operations.

YT24 YT28 pusher leg rock drills always works with support air leg, can be used for any angle drilling.
Y6, Y20, Y24, and Y26 hand held rock drills works without air leg, mainly use for downwards drilling.

2. Gasoline rock drilling machine
This type rock drill adapt to outside situations where there is no water, no electronic power and no air compressor. It's a kind of hand held rock drill with gasoline engine, air pump and rotation plumbum equipment for running or stop. It can be used for breaking, drilling, blasting, tamping splitting and ramming.

Advantages of hand-held air rock drill:
A: Reasonable design
B: Convinient operation
C: Fast drilling velocity
D: Engery-saving
E: Efficient
F: Long service life of parts
G: Parts highly interchangeable and reliable performance etc
H: Both hand held and with airleg available.

Type Y6 YO18* Y19A* Y20 Y20LY*
Weight (kg) 6 18 19 18 18
LxW(Handie)xH (mm) 426(Length) 550x534x157 600x534x157 605x485x110 609x198x135
Cylinder stroke(mm) / 58*45 65*54 63*55 63*55
Air Consumption (L/s) ≤9.5 ≤25.5 37~43 25 ≤25
Air hose size (mm) 13 19 19 16or19 16or19
water hose size (mm) / 8 13 / 8
Bore dia (mm) 20 32-38 32-42 32-42 32-42
Drilling depth (m) 0.5 5 5 5 5
Shank (mm) 15x88 22x108 22x108 22x108 22x108


Type Y24 TY24C Y26 YH24
Weight (kg) 24 24 26 24
LxW(Handie)xH (mm) 604x485x162 610x485x158 650x534x125 604x485x162
Cylinder stroke(mm) 70*70 66.7*68 64*70 70*70
Air Consumption (L/s) 55 ≤45 ≤50 55
Air hose size (mm) 19 19 19 19
water hose size (mm) / / 13 13
Bore dia (mm) 32-42 32-42 32-42 32-42
Drilling depth (m) 5 5 5 5
Shank (mm) 22(25)x108 22x108 22(25)x108 22x108


 *Both hand held and with airleg available.

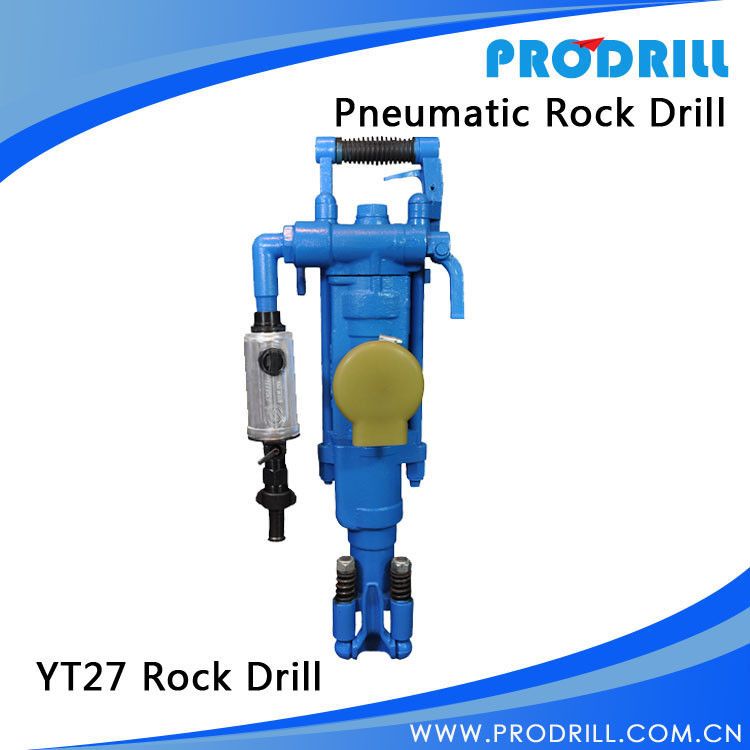

YT27 rock drillY26 hand held rock drill Rock Drill Spare Parts.jpg




Packaging & Shipping



Terms  & Conditions of Ordering:

1 .Payment Terms:

T/T (Telegraphic Transfer) or Western Union

2. Delivery Term:

Based on order quantity, normally it takes 25 days for production.

Only 2 or 3 days if we have stock on your request size.

3. Transportation:

Sample order: we suggest Courier express or by air

Bulk order: we suggest by air or by sea.

4. Quality & Service:

A. There will be strict inspection and testing for every order before shipping out.

B Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded) through skype( simonhu6) and WhatsApp/Wechat: + 86 139 1110 7654

C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.
