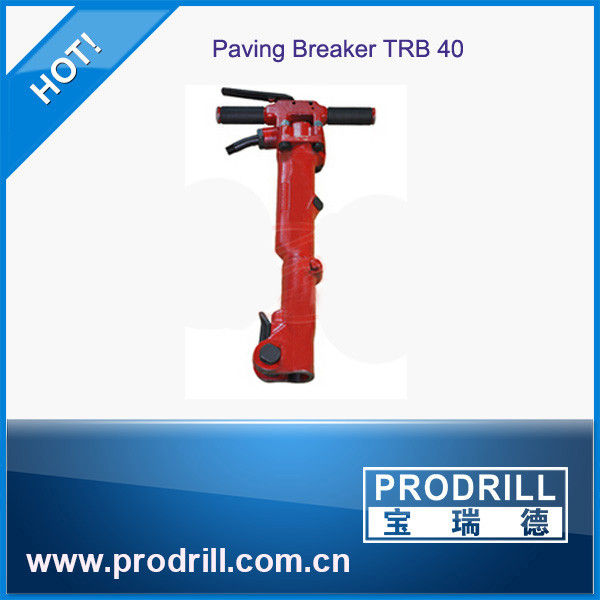

pneumatic air pick paving breaker

China pneumatic air pick paving breaker supplier

Large Image :  pneumatic air pick paving breaker

Product Details:

Place of Origin: China
Brand Name: PRODRILL
Certification: ISO:9001, CE
Model Number: TPB 40

Payment & Shipping Terms:

Minimum Order Quantity: 3 Pcs
Price: $410/pcs
Packaging Details: WOODEN BOX
Delivery Time: 10-15 DAYS
Payment Terms: T/T
Supply Ability: 5000Pcs/Month
Contact Now
Detailed Product Description
Piston Diameter: 57.15 Total Length: 660mm
Air Pressure: 0.63Mpa Use: Broken Tool

TPB 40/60/90 Pneumatic breakerare the power of the air demoltion tool. It uses the East Japan Air (TOKU) group with the mature technology of compressed air. It also can high-efficiency complete reinforced concrete. Rock , Asphalt etc, with the broken, more horsepower. The more high-efficiency, the longer life characteristics, especially suitable for big characteristics. The special thick, the broken objects. Hard work, is mine. The bridge, the road. Civil infrastructure project construction ideal tool!

All parts of machine are made of alloy steel, and have great durability.
Back head is fixed by four bolts, and can endure the extremely hard condition
Quick reblading-type gripper, easy changing chisel, Hex. Shank
It is used to break or excavate the asphalt.

Specification

Model: TPB60
Piston diameter: 57.15mm
Piston stroke: 146mm
Impact frequency: 1250 minute/Time
Net weight: 30kg/60lbs
Total length: 660mm
Air consumption: 2.0m3/minute
Hose size: 19mm(3/4inch)
Shank specifications: 1× 4-1/4 25X108
Inlet size: 3/4PT
Air pressure: 0.63Mpa

We supply many kinds of jack hammer, rock drill, welcome to inquiry ~
Jack hammer: RB777, RB777C, B77C, B87C, B67C, B47C, B70, TPB-40, TPB-60, TPB-90, G10, G20, TCA-7
Air leg rock drill: YT27, YT28, YT29A, YT24, YT23, YT23D, YO18, Y20, YSP45
Hand hold rock drill: Y19A, Y24, Y26, TY24C, Y6, Y10

Model

TPB40

TPB60

TPB90

Piston diameter

44mm

57.15mm

66.67mm

Piston stroke

100mm

146mm

152mm

Impact frequency

900 minute/Time

1250 minute/Time

1400 minute/Time

Net weight

18kg/39.6lbs

30kg/60lbs

42kg/92.4lbs

Total length

660mm

645mm

723mm

Air consumption

1.6m3/minute

2.0m3/minute

2.2m3/minute

Hose size

19mm(3/4inch)

19mm(3/4inch)

19mm(3/4inch)

Shank specifications

1×4-1/4 25X108

1×4-1/4 25X108

1×4-1/4 25X108

Inlet size

3/4pt

3/4pt

3/4pt

Air pressure

0.63Mpa

0.63Mpa

0.63Mpa
