Type: | Cylindrical Grinding Machine | Disc Diameter: | 125*63*32mm |
---|---|---|---|
Max. Grinding Diameter: | 250mm |

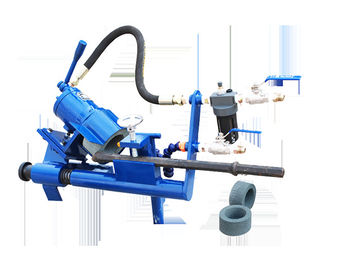

This pneumatic machine is designed for grinding the chisel bits and integral drill rods.Your worn bit or rod can be reused after being grinded by our grinding machine, to prolong their service life and save your money. It's hand-held using, very convenient. And we have CE certificate for this machine.
PD-125 Air grinding machine (for Integral rod, chisel bits, button bits sharpening)(integral drill rod chisel type) milling machine surface grinder. Its Capable for re-grinding of Blunted Drill Steel Rods at an angle of 110o.
Since the BCG is subjected for arduous working conditions in the Mines, Quarries. The Grinder is now developed with specialized design and mounted on Drill Steel Rods, possessing high design and mounted on Drill Steel Rods, possessing high strength balance and easy to transport and simple to setup.
Techncal Specification | |
Rotaton speed | 3500 RPM max |
Motor power | HP2 |
Sharpening angle | 110° |
Sharpening radius | 125mm |
Operating pressure insufficiet | 6.0bar |
Air consumption at 6 bar | 1.5mc/min |
Abrasive grinder diameter | 152mm |
Grinder height | 70mm |
Grinder thickness | 22mm |
Grinder hole(diameter) | 32mm |
Bench version weight | 36kg |
Portable version weight | 37kg |
PD200 Air grinder shed with small rock drill on non-power source scene and working site, solving the drill’s tool sharpening problem. It is a ideal supporting tools for air rock drill and diesel engine. It brings more convenience, and it will improve the rock drilling work efficiency and bring the considerable economic efficiency.
Techncal Specification | |
Weight | 15kg |
Dia diameter | 250mm |
Dia pressure | 0.45Mpa |
Idling rotational speed | 5300min |
Frequency | 1.35m/min |
Power rating | 0.7kw |
Inner dia of air pipe | 19mm |
