Shank Hex 22*108mm R22 Thread Shank Rod for Quarrying

China Shank Hex 22*108mm R22 Thread Shank Rod for Quarrying supplier

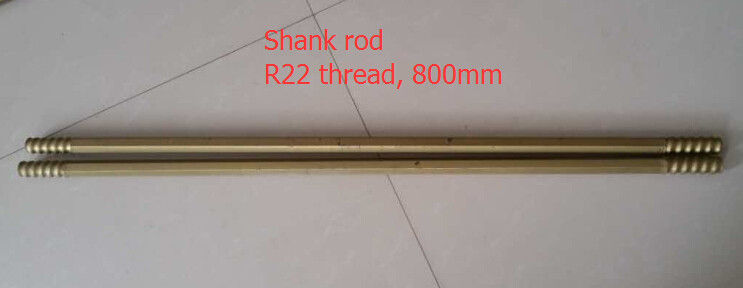

Large Image :  Shank Hex 22*108mm R22 Thread Shank Rod for Quarrying

Product Details:

Place of Origin: China
Brand Name: PRODRILL
Certification: ISO:9001, CE
Model Number: R22 , 800mm

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pcs
Price: $1~$300/pcs
Packaging Details: Wooden box
Delivery Time: 3 to 15 days
Payment Terms: T/T, L/C, Western Union etc.
Supply Ability: 10000Pcs/Month
Contact Now
Detailed Product Description
Type: Drill Shank Machine Type: Drilling Tool
Material: Carbide Processing Type: Forging
Use: Quarrying

Product description :


shank size is 22 x 108mm, and drill rod end connect bit with thread way.Normally R22,R25,R32 for small hole.    We manufacture shank end rods in the following threads:R22, R23, R25, R28, R32 mainly focus the stone quarrying such as granite, marble, limestone, sand stone quarries drilling , diameter of hole range from 38mm-50mm at most, Prodrill use the following special heat treament techology to process

- Carburization is a process used to harden the entire rod surface both internally and externally to
strengthen and extend the life of the rod.

- High Frequency Induction is a process where only the thread ends of the rod are hardened to lengthen
thread life.

And more, Pro-drill 's comprehensive range of bench and production rock drilling tools includes everything from 1''rope thread equipment all the way up to T60 thread equipment, Many customers say that the Pro-drill rods, tubes and button bits are the best on the market today. Let's just say they will improve productivity considerably.

Shank rods specification.


Shank size Length in mm Thread type
22X108 250 R25
22X108 400 R25
22X108 1830 R25
22X108 2440 R25
22X108 3050 R25
22X108 250 R28
22X108 400 R28
22X108 1830 R28
22X108 2440 R28
22X108 3050 R28
22X108 250 R32
22X108 400 R32
22X108 1830 R32
22X108 2440 R32
22X108 3050 R32
25X108 SAME L. R25-R32



Our main products are as below:

Construction & Mining & Rock Drill Tools:

A. DTH Hammer and Bit (2''-24''), Overburden Drilling System; RC System.

B. Top Hammer (drill hole dia.: 33 ~ 152mm).

1) Thread Tools (Button Bits, Rod, Coupling, Shank Adaptor): (R25/28/32/38, T38/45/51, ST58,GT60).

2) High Rang Soundless Cracking Agent (dia. 40 ~ 50mm).



Quarrying Drill Tools (drill hole dia.: 17 ~ 45mm).

1) Taper Drill Tools (Bit: button/chisel; Rod: Tapered/Integral), Carbide Tips, Segment, Grinding Wheel, Grinder.

3) Pneumatic Rock Drill: Hand-held (Y24, TY24C), Air leg (YT28) and Gasoline (YN27J).

4) Expansive Mortar (dia. 30 ~ 35mm); Hydraulic Rock Splitter PD40-250, Aluminum Cylinder.

5) Air Pushing Bag, Water Bag; Pneumatica Splitter G10, Hand Splitter, etc.

6) Hydraulic Breaker hammer, Paving breaker TPB40, 60, 90 for rock or concrete demolition.

7) PD28, PD45, PD90, PD115/HC20 Excavator mounted rock drilling.
