Made from high alloy steel and tungsten carbide as same grade as internationally well-known brand
Apply "hot (thermal) -insertion" processing procedure to insert the buttons as same as internationally well-known brand
Entire CNC processing procedure ensure the quality consistency
Military grade requirements of heat-treatment guarantee durability
Fast penetration rates, and streight and clean hole quality. Long life of drilling holes.

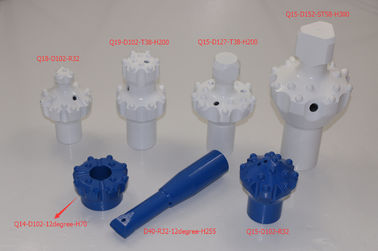

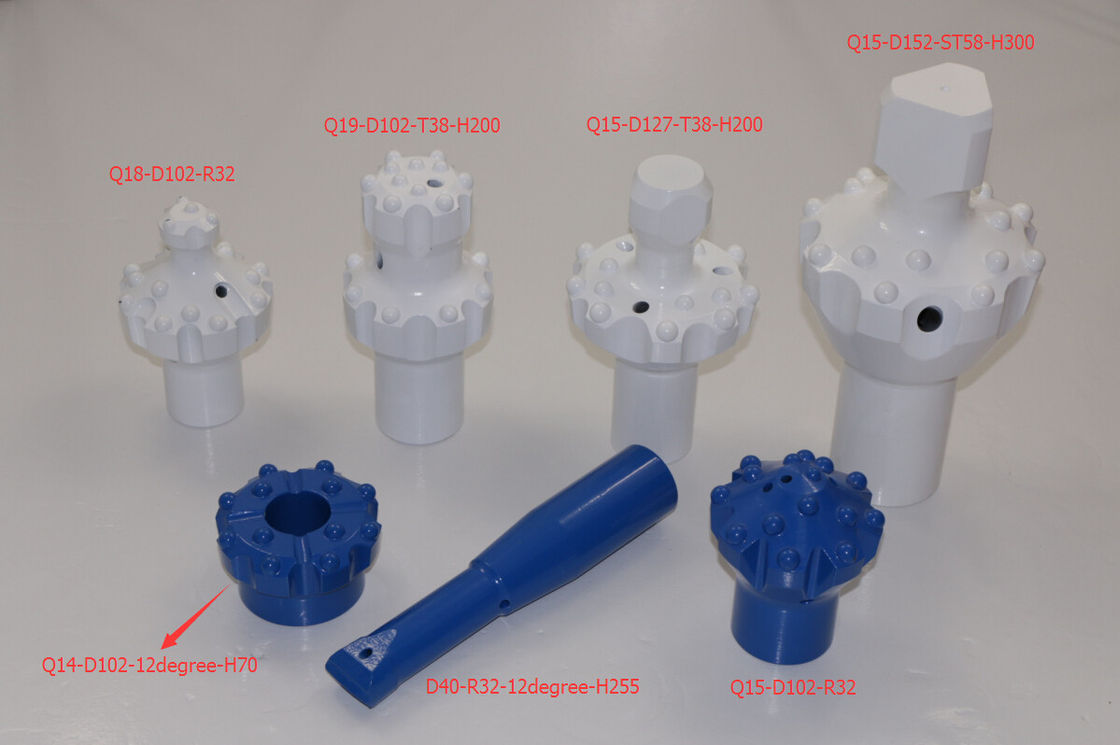

A reaming bit functions to enlarge a borehole and it is designed with a drill portion and a reamer portion. The drill portion is formed by cutting edges at the end of a plurality of flutes, and the reamer portion includes a first relief formed on each flute surface disposed at a predetermined angle with respect to the flute surface to form a first reamer cutting edge. A second relief is formed contiguous with the first face on each reamer portion and is disposed at a second angle, less than the first angle with respect to the flute surface.
Taper Reaming Bits Diameter:64mm-102mm
Normal taper:6degree, 12degree
Thread Reaming Bits Diameter:89mm-152mm
Normal thread:R25, R28, R32, T38
Type:Pilot, Integral
Two types of reaming bits:button bit reamers and pilot adapter/reamers.
Technical Specifications
