Tapered Chisel Bit Y1-34-6 22-80

China Tapered Chisel Bit Y1-34-6 22-80 supplier

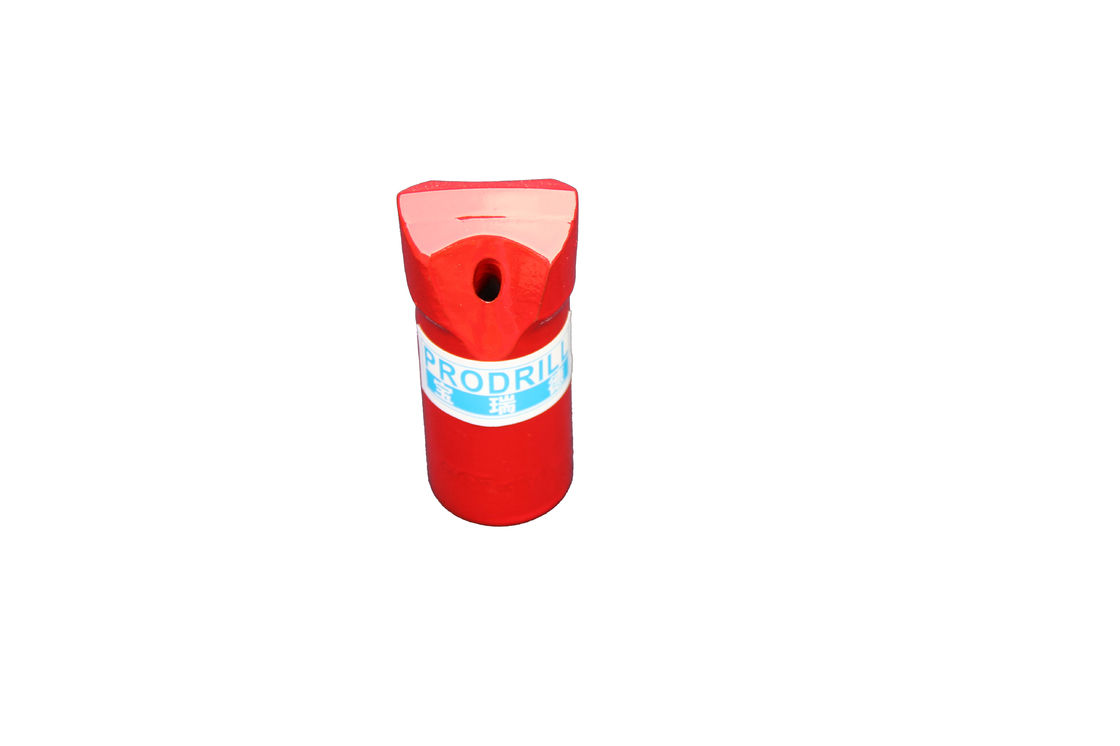

Large Image :  Tapered Chisel Bit Y1-34-6 22-80

Product Details:

Place of Origin: China
Brand Name: PRODRILL
Certification: ISO:9001

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: $1~$300/pcs
Packaging Details: WOODEN BOX
Delivery Time: 10 to 15 days
Payment Terms: T/T, L/C, Western Union etc.
Supply Ability: 10000Pcs/Month
Contact Now
Detailed Product Description
Type: Drill Bit Machine Type: Drilling Tool
Material: Carbide Processing Type: Forging
Use: Coal Mining


Chisel bits is suitable for mining of black metal mines(such as iron mine/ manganese ore), nonferrous metal mine(such as gold/silver/copper ore), marble and granite etc.Its drilling depth usually is 15m-18m in case of hardness grade F8-14. At present, there are Horse Shoe Bits and Chisel bits. Chisel is more popular in Saudi, and it's suitable for hard rock drilling.
It is widely used in drilling holes with a depth size less than 5 meters and diameter scope in 20-45 mm by light-duty hand hold drills, Like Y6, Y10, Y24, , major use in natural dimensional stone quarry for
small hole drilling, block ‘s trimming and 2nd splitting for small blocks. To match Hexagonal 22 mm and
Hexagonal 12 mm’s tapered drill steel with 4 ,6,7,11,12 degree , All tapered chisel bit are made with
high quality of raw material through special heat treatment, The deliver capacity are very strong and can
completely meet customer’s requirements on delivery design.

Product features:

Premium designs and steel and premium tungsten carbide inserts(cemented carbide bits), Offers industry-leading strength and penetration rates for more productivity,Excellent straightness and hole clean quality, Get max.drilling performance for rock drill with long life to save up fuel cost .

Tapered chisel drill bit specifications

  • Type: chisel bits
  • Size: 19mm,22mm,25mm
  • Diameter: 32-42mm.
  • Taper degree: 4°6°7°11°12°
  • Package:in wooden case or in carton.
  • Productivity: 10000pcs/month

In addtion to tapered chisel drill bits, we also provide thread drill tools, taper drill tods, down the hole drill tools, rock anchors, taphole drilling and quarry drill tools and more. These drilling tools are of high quality and at low low price. We welcome you to visit us and try our drill equipment.

Tapered Chisel Bits
Dia.(mm) Carbide tip size(mm)
Taper Degree Length(mm) Part No. Suitable Rock Drill
32 12*8 22*7 76 Y1/Y2 32-7 22-69 TY24C,Y24,Y26,
Hydraulic Crawler Drill,
Pneumatic Mobile Drill
33 12*8 22*7 76 Y1/Y2 33-7 22-69
34 12*8 22*7 76 Y1/Y2 34-7 22-69
36 14*8 22*7 76 Y1/Y2 36-7 22-69
38 15*10 22*7 76 Y1/Y2 38-7 22-69
40 15*10 22*7 76 Y1/Y2 40-7 22-69
42 15*10 22*7 76 Y1/Y2 42-7 22-69
