Description:
SOD Permanent

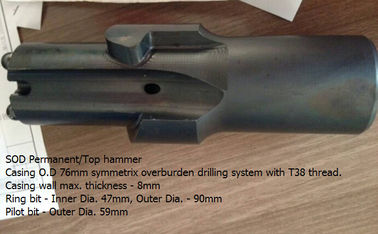

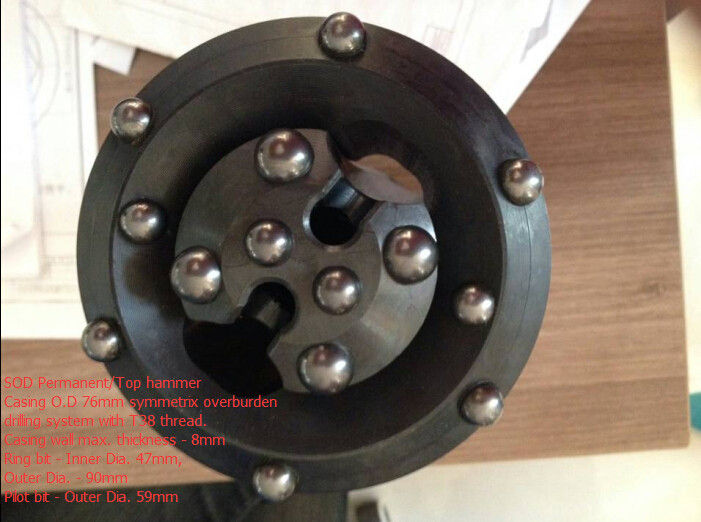

Top hammer T38 with Casing O. D 76mm Symmetrix overburden drilling system
Casing wall max. thickness - 8mm
Ring bit - Inner Dia. 47mm, Outer Dia. - 90mm
Pilot bit - Outer Dia. 59mm
Permanent/Top hammer Symmetrix overburden drilling system |
|||||||||||
Code No. | Casing O.D. | Wall thickness | Ring bit I.D. | Ring bit O.D. | Polit bit O.D. | Thread | |||||
mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | ||
RoBit-SOD 89 | 89 | 3 1/2'' | 4 | 0.157 | 71 | 2.795 | 99 | 3.898 | 80 | 3.15 | T38 |
RoBit-SOD 76 | 76 | 3'' | 8 | 0.315 | 47 | 1.85 | 90 | 3.543 | 59 | 2.323 | T38 |
RoBit-SOD 89 | 89 | 3 1/2'' | 8 | 0.315 | 50.8 | 2 | 94.9 | 3.736 | 70 | 2.756 | T38 |
RoBit-SOD 101 | 101.6 | 4'' | 10 | 0.394 | 65 | 2.559 | 110 | 4.331 | 79 | 3.11 | T38 |
RoBit-SOD 114 | 114 | 4 1/2'' | 10 | 0.394 | 73.5 | 2.894 | 120.3 | 4.736 | 92.5 | 3.642 | T38 |
RoBit-SOD 140 | 140 | 5 1/2'' | 10 | 0.394 | 94 | 3.701 | 145.7 | 5.736 | 117.5 | 4.626 | T45 |
RoBit-SOD 168 | 168 | 6 5/8'' | 10 | 0.394 | 127 | 5 | 182.3 | 7.177 | 147 | 5.787 | T45 |
SOD Permanent/Top hammer Symmetrix overburden drilling system |
||||||||
Order number |
Casing wall max. thickness |
Ring bit | Pilot bit | Unit | ||||
Inner | Outer | Outer | ||||||
ATLAS-SOD 76 | 8 | 41 | 88 | 58 | mm | |||
0.31 | 1.61 | 3.46 | 2.26 | inch | ||||
ATLAS-SOD 89 | 8 | 54 | 100 | 70 | mm | |||
0.31 | 2.13 | 3.94 | 2.76 | inch |
Prodrill successfully manufactured ROBIT Rox+ Symmetrix Casing System, size as follow:
1. Casing O.D 89mm
2. Casing wall Max. 4mm.
3. Ring Bit I.D. 71mm,
4. Ring Bit O.D 99mm
5. Pilot bit. O.D 80mm
This Symmetrix Casing System, Pilot bit, and Ring Bits are widely applied for forepiling tunnel tube umbrella anchoring, water well, foundation.
More Info.
Outer Dia Of Casing Tube | Inner Dia Of Casing Tube | Reamed Dia | Min Inner Dia Of Casing Shoe | Drill Pipes | Max.Outer Dia Of Normal Bit |
mm | mm | mm | mm | mm | mm |
114 | 101-103 | 127 | 91 | 76 | 77 |
127 | 114-116 | 136 | 101 | 76 | 82 |
140 | 124-127 | 152 | 117 | 76 | 92 |
146 | 127-132 | 154 | 117 | 76 | 105 |
168 | 149-155 | 184 | 140 | 76 | 105 |
178 | 159-165 | 194 | 150 | 76.89 | 125 |
193 | 173-180 | 206 | 164 | 76.89 | 140 |
219 | 199-206 | 234 | 184 | 89.114 | 150 |
244 | 224-231 | 260 | 210 | 89.114 | 165 |
273 | 251-257 | 305 | 240 | 114 | 190 |
323 | 301-310 | 348 | 284 | 114.127 | 220 |
406 | 382-388 | 440 | 364 | 127 | 255 |
457 | 433-439 | 488 | 413 | 140 | 340 |
508 | 484-490 | 538 | 464 | 140 | 385 |
558 | 534-540 | 590 | 514 | 140 | 440 |
610 | 586-592 | 642 | 566 | 140 | 485 |
660 | 636-642 | 694 | 615 | 168 | 540 |
711 | 687-693 | 745 | 665 | 168 | 590 |
762 | 738-744 | 798 | 716 | 168 | 640 |
863 | 839-845 | 900 | 815 | 168 | 685 |
