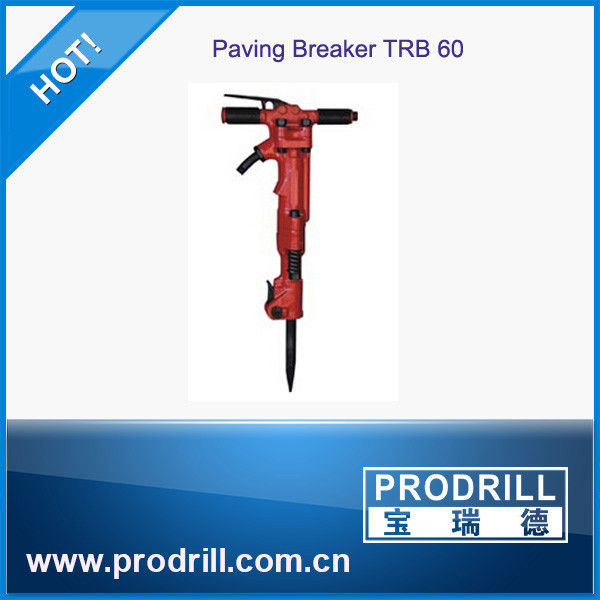

Tpb60 Paving Breaker for Rock Demolition

China Tpb60 Paving Breaker for Rock Demolition supplier

Large Image :  Tpb60 Paving Breaker for Rock Demolition

Product Details:

Place of Origin: China
Brand Name: PRODRILL
Certification: ISO:9001
Model Number: TPB40 TPBTpb60 TPB90

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pcs
Price: $1~$300/pcs
Packaging Details: WOODEN BOX
Delivery Time: 10-15 DAYS
Payment Terms: T/T
Supply Ability: 5000Pcs/Month
Contact Now
Detailed Product Description

Tpb40 Tpb60 Tpb90 Pneumatic Paving Breaker

Decription:

All parts of pneumtic air pick breaker hammer are made of alloy steel, and have great durability.
Back head is fixed by four bolts, and can endure the extremely hard condition
Quick reblading-type gripper, easy changing chisel, Hex. Shank
It is used to break or excavate the asphalt

Model TPB40 TPB60 TPB90
Piston diameter 44mm 57.15mm 66.67mm
Piston stroke 100mm 146mm 152mm
Impact frequency 900 minute/Time 1250 minute/Time 1400 minute/Time
Net weight 18kg/39.6lbs 30kg/60lbs 42kg/92.4lbs
Total length 660mm 645mm 723mm
Air consumption 1.6m3/minute 2.0m3/minute 2.2m3/minute
Hose size 19mm(3/4inch) 19mm(3/4inch) 19mm(3/4inch)
Shank specifications 1×4-1/4 25X108 1×4-1/4 25X108 1×4-1/4 25X108
Inlet size 3/4pt 3/4pt 3/4pt
Air pressure 0.63Mpa 0.63Mpa 0.63Mpa

TPB-90 Pneumatic Hammer

Model TPB-90 breaker is the power of the broken tool. It uses the East Japan Air (TOKU) group with the mature technology of compressed air. It also can high-efficiency complete reinforced concrete. Rock , Asphalt etc, with the broken, more horsepower. The more high-efficiency, the longer life characteristics, especially suitable for big characteristics. The special thick, the broken objects. Hard work, is mine. The bridge, the road. Civil infrastructure project construction ideal tool!

Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory

About Us:
1.    Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2.    We have advanced technology and equipment.
3.    Our technician has more than 13 year's professional working experience.
4.    Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
