TPB-40 Pneumatic Hammer

China TPB-40 Pneumatic Hammer supplier

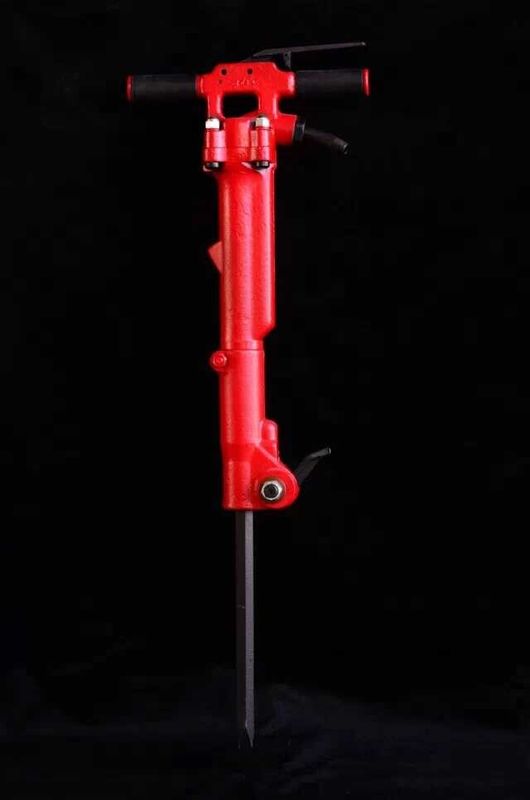

Large Image :  TPB-40 Pneumatic Hammer

Product Details:

Place of Origin: China
Brand Name: PRODRILL
Certification: ISO:9001, CE
Model Number: TPB40 Pneumatic Hammer

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pcs
Price: $1~$1000/pcs
Packaging Details: Wooden box
Delivery Time: 3 to 15 days
Payment Terms: T/T, L/C, Western Union etc.
Supply Ability: 10000Pcs/Month
Contact Now
Detailed Product Description
Type: Drill Bit Machine Type: Drilling Tool
Material: Carbide Processing Type: Forging
Use: Demolition Rock

Description

TPB-40 Pneumatic Hammer
Model TPB-40 breaker is the power of the broken tool. It uses the East Japan Air (TOKU) group with the mature technology of compressed air. It also can high-efficiency complete reinforced concrete. Rock , Asphalt etc, with the broken, more horsepower. The more high-efficiency, the longer life characteristics, especially suitable for big characteristics. The special thick, the broken objects. Hard work, is mine. The bridge, the road. Civil infrastructure project construction ideal tool!

Specification

Model TPB40 TPB60 TPB90
Piston diameter 44mm 57.15mm 66.67mm
Piston stroke 100mm 146mm 152mm
Impact frequency 900 minute/Time 1250 minute/Time 1400 minute/Time
Net weight 18kg/39.6lbs 30kg/60lbs 42kg/92.4lbs
Total length 660mm 645mm 723mm
Air consumption 1.6m3/minute 2.0m3/minute 2.2m3/minute
Hose size 19mm(3/4inch) 19mm(3/4inch) 19mm(3/4inch)
Shank specifications 1×4-1/4 25X108 1×4-1/4 25X108 1×4-1/4 25X108
Inlet size 3/4pt 3/4pt 3/4pt
Air pressure 0.63Mpa 0.63Mpa 0.63Mpa

Our main products are as below:

Construction & Mining & Rock Drill Tools:

A. DTH Hammer and Bit (2''-24''), Overburden Drilling System; RC System.

B. Top Hammer (drill hole dia.: 33 ~ 152mm).

1) Thread Tools (Button Bits, Rod, Coupling, Shank Adaptor): (R25/28/32/38, T38/45/51, ST58,GT60).

2) High Rang Soundless Cracking Agent (dia. 40 ~ 50mm).



Quarrying Drill Tools (drill hole dia.: 17 ~ 45mm).

1) Taper Drill Tools (Bit: button/chisel; Rod: Tapered/Integral), Carbide Tips, Segment, Grinding Wheel, Grinder

3) Pneumatic Rock Drill: Hand-held (Y24, TY24C), Air leg (YT28) and Gasoline (YN27J).

4) Expansive Mortar (dia. 30 ~ 35mm); Hydraulic Rock Splitter PD40-250, Aluminum Cylinder.

5) Air Pushing Bag, Water Bag; Pneumatica Splitter G10, Hand Splitter, etc.

6) Hydraulic Breaker hammer, Paving breaker TPB40, 60, 90 for rock or concrete demolition.

7) PD28, PD45, PD90, PD115/HC20 Excavator mounted rock drilling.

Should you are interested in our products,pls contact us freely .

We do wish we can establish the good and long-term business relations and make us stronger and mutual benefit together.
