used with the YGZ90 guide rail independent rotary drifter hammer FJ25 disk rock

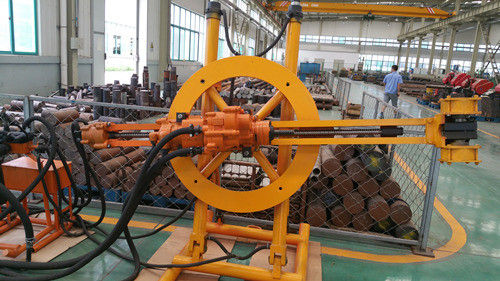

: Large Image : used with the YGZ90 guide rail independent rotary drifter hammer FJ25 disk rock

Product Details:

Place of Origin:	China
Brand Name:	PRODRILL
Certification:	ISO:9001, CE
Model Number:	FJ25

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$1000/pc-$10000/PC
Packaging Details:	standard package
Delivery Time:	10-15 DAYS
Payment Terms:	T/T，L/C，Western union
Supply Ability:	100pcs/month

Contact Now

Detailed Product Description

Product introduction:

Model number PD-25 disk pneumatic rock drill is used with the YGZ90 guide rail

independent rotary drifter hammer.

it is a medium~length hole drilling equipment with compressed air as the driving force.

For the underground section is 2.2 x 2.2 m to 3 x 3 m,

drilling hole diameter is 50~80 mm, mainly used for underground mining ,

R32 thread MM 1.1m rod drilling upward,

fan~shaped and ring deep hole,

can also be used for underground stop caving and rock bolting,

and drilling the hole stonework similar to the above .

Product features:

Type PD-25 disk drill rig has the advantages of simple structure,

operation concentration ,

easy disassembly and maintenance and carrying light .

Operating board separate from drilling rig ,

only connected to rubber hose and working mechanism,

the operator can work in a place where far away from the drilling machine,

so the working condition is good ,safe and reliable.

TECHNICAL SPECIFION:
Parameter name	Unit	Parameter name
Weight	kg	Drilling frame 480
Weight	kg	Operating table 120
Dimension size	mm	Drilling frame 1725×1000×2040
Dimension size	mm	Operating table 1100×700×960
Maximum height	mm	3370
Drill drift specifications	m	2.2×2.2-3×3
Drill rod length	mm	1100
Driving motor power	kW	2.1
Driving force	kN	≥8.82
Driving stroke	mm	1140
Lubricator oil	L	5
Air hose inner dia	mm	Φ38
Water hose inner dia	mm	Φ19
Working air pressure	MPa	0.5-0.7
Water pressure	MPa	0.4-0.6
