Water Well and Mining Drilling DTH Hammer and Bits

China Water Well and Mining Drilling DTH Hammer and Bits supplier

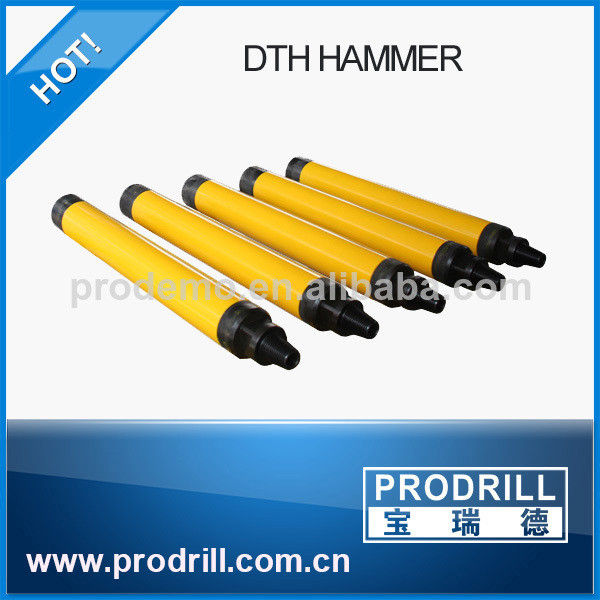

Large Image :  Water Well and Mining Drilling DTH Hammer and Bits

Product Details:

Place of Origin: China
Brand Name: Prodrill
Certification: ISO:9001, CE
Model Number: DHD COP QL DTH hammer and bits

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pcs
Price: $1~$1000/pcs
Packaging Details: WOODEN BOX
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union etc.
Supply Ability: 5000Pcs/Month
Contact Now
Detailed Product Description

It is a kind of high air pressure DTH Hammer without foot valve and without valve, our newest design. It is also one of the most advanced DTH Hammers in the world.

General Introduction:

We manufacture DTH Hammers in different sizes ranging from 3 to 12. These hammers are made corresponding to Drilling Bits to carry out prevalent objectives. These hammers are used in various down the hole operations like bench Drilling. These are valve less hammers with optimized air cycle frequency. These are heavy duty hammers that well at greater depths demanding less air usage, delivering minimum performance loss. We offer IR hammer, DHD3.5, DHD340a, DHD360, DHD380, COP and QL hammer. The optimum range of hole size for blast drilling with DTH is 90mm to 254mm, smaller blast holes are generally drilled using top hammer, and larger holes generally use rotary machines. Our hammer like COP and QL are known fort heir reliability and longevity.

1-12 inch middle-low/high air pressure DTH hammer & bit
Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit
Shank adapter, coupling sleeves and all kinds of adapters


Specification: Weight (kg) External Diameter (mm) Connection thread Hole rang (mm) Impact rate Recommended rotation speed
3 inch DTH hammer
COP34/QL30 etc
24.5 81 API 2 3/8" Reg 90~110 28Hz (at 17 bar) 28 r/min
4 inch DTH hammer
COP44/DHD340 etc
39.2 99 API 2 3/8" Reg 110~150 27Hz (at 17 bar) 25~40 r/min
5 inch DTH hammer
COP54/Mission50 etc
71.5 125 API 2 3/8" or API 3 1/2" Reg 135~165 25Hz (at 17 bar) 20~30 r/min
6 inch DTH hammer
COP64/QL60 etc
98 142 API 3 1/2" Reg 152~216 23Hz (at 17 bar) 15~25 r/min
8 inch DTH hammer
COP84/SD8 etc
188 180 API 4 1/2" Reg 203~305 20Hz (at 17 bar) 15~


Advantages:
Compared with the oversea brands, our advantages are bellowing:
A. Our products can match over 95% against the original products
B. Price are competitive against the famous brands and best quality against the small factory

About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
