YN27J Gasoline Rock Drill

China YN27J Gasoline Rock Drill supplier

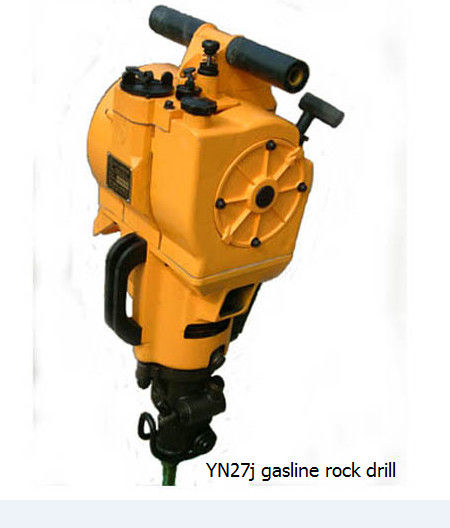

Large Image :  YN27J Gasoline Rock Drill

Product Details:

Place of Origin: China
Brand Name: PRODRILL
Certification: ISO:9001
Model Number: Yn27j

Payment & Shipping Terms:

Minimum Order Quantity: 2 Pcs
Price: $1~$300/pcs
Packaging Details: WOODEN BOX
Delivery Time: 10-15 DAYS
Payment Terms: T/T
Supply Ability: 5000Pcs/Month
Contact Now
Detailed Product Description
Weight: 27kg Max Drilling Depth: 6m
Shank Size: Hex 22*108mm Ignition System: Contactless System


YN27J Gasoline Rock Drill

Description:
The Internal Combustion Rock Drill Type YN27J is a very efficient machine with the haracters that the structure is very compact, Less of the-easy-to-damage-parts, and very easy to control. It can
adapt to these outside situations there is no water and no electronic power. It is a Kind hand held drill built up with gasoline engine, Air pump, rock drill and the rotation plumbum equipment for running or stop. It can be used as a tool for breaking, percussive drilling, tamping besides rock.
Other type: YN27A,YN28,YN30A,YN30W

Product features:
The Internal Combustion Rock Drill Type YN27J is a very efficient machine with the haracters that the structure is very compact, Less of the-easy-to-damage-parts, and very easy to control. It can adapt to these outside situations there is no water and no electronic power. It is a Kind hand held drill.

 Specification.

Weight 27kg
Dimension 746*315*229mm
Diameter of engine piston Φ58mm
Stroke of engine piston 70mm
Rotating speed of engine ≥2450R/min
Rotating speed of drilling rod ≥250R/min
Oil consumption ≤0.12L/min
Tank capacity 1.65L
Max. drilling depth 6m
Shank size Hex22x108mm
Ignition system controllable silicon, contactless system
Mixture ratio of gasoline and lubrication oil 12:1


Ps.: Others Products.

1. Besides C1 C2 C3 non explosive blasting chemicals , we also sell other Stone drilling tools:
1) Rock drill:
Handheld rock Drill: Y10, Y18, Y20, Y24, Y26, TY24C, etc;
Airleg rock drill: YT24, YT28, etc;
2) Drill rod: Taper rod (hex. 22 * 108mm)
3) Drill bit: Taper button bit, Taper chisel bit, Taper cross bit
4) Splitter: Handheld stone splitter (or shims and wedges or plug and feather), G10 pneumatic splitter
5) Breaker: G10, TPB, etc;

2. Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory

3. About Us:
1.    Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2.    We have advanced technology and equipment.
3.    Our technician has more than 13 year's professional working experience.
4.    Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
