Top hammer Casing O. D 89mm Symmetrix overburden drilling system with R32/R38/T38 thread

China Top hammer Casing O. D 89mm Symmetrix overburden drilling system with R32/R38/T38 thread supplier
Top hammer Casing O. D 89mm Symmetrix overburden drilling system with R32/R38/T38 thread supplier Top hammer Casing O. D 89mm Symmetrix overburden drilling system with R32/R38/T38 thread supplier

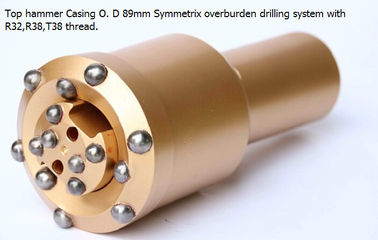

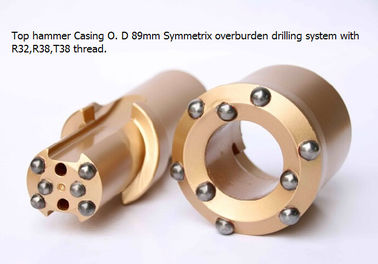

Large Image :  Top hammer Casing O. D 89mm Symmetrix overburden drilling system with R32/R38/T38 thread

Product Details:

Place of Origin: China
Brand Name: PRODRILL
Certification: ISO:9001, CE
Model Number: TOP HAMMER SYMMETRIX CASING O.D 89MM with R32

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pcs
Price: $1~$1000/pcs
Packaging Details: Wooden box
Delivery Time: 3 to 15 days
Payment Terms: T/T, L/C, Western Union etc.
Supply Ability: 10000Pcs/Month
Contact Now
Detailed Product Description
Type: Drill Bit Machine Type: Drilling Tool
Material: Carbide Processing Type: Forging
Use: Well Drilling

Description:

SOD Permanent
Top hammer T38 with Casing O. D 89mm Symmetrix overburden drilling system
Casing wall max. thickness - 8mm
Ring bit - Inner Dia. 54mm, Outer Dia. - 100mm
Pilot bit - Outer Dia. 70mm

Permanent/Top hammer
Symmetrix overburden drilling system
Code No. Casing O.D. Wall thickness Ring bit I.D. Ring bit O.D. Polit bit O.D. Thread
mm inch mm inch mm inch mm inch mm inch
RoBit-SOD 89 89 3 1/2'' 4 0.157 71 2.795 99 3.898 80 3.15 T38
RoBit-SOD 76 76 3'' 8 0.315 47 1.85 90 3.543 59 2.323 T38
RoBit-SOD 89 89 3 1/2'' 8 0.315 50.8 2 94.9 3.736 70 2.756 T38
RoBit-SOD 101 101.6 4'' 10 0.394 65 2.559 110 4.331 79 3.11 T38
RoBit-SOD 114 114 4 1/2'' 10 0.394 73.5 2.894 120.3 4.736 92.5 3.642 T38
RoBit-SOD 140 140 5 1/2'' 10 0.394 94 3.701 145.7 5.736 117.5 4.626 T45
RoBit-SOD 168 168 6 5/8'' 10 0.394 127 5 182.3 7.177 147 5.787 T45
SOD Permanent/Top hammer
Symmetrix overburden drilling system
Order number Casing wall
max. thickness
Ring bit Pilot bit Unit
Inner Outer Outer
ATLAS-SOD 76 8 41 88 58 mm
0.31 1.61 3.46 2.26 inch
ATLAS-SOD 89 8 54 100 70 mm
0.31 2.13 3.94 2.76 inch


More Info.

Outer Dia Of Casing Tube  Inner Dia Of Casing Tube Reamed Dia Min Inner Dia Of Casing Shoe Drill Pipes Max.Outer Dia Of Normal Bit
    mm      mm   mm   mm  mm  mm
114 101-103 127 91 76 77
127 114-116 136 101 76 82
140 124-127 152 117 76 92
146 127-132 154 117 76 105
168 149-155 184 140 76 105
178 159-165 194 150 76.89 125
193 173-180 206 164 76.89 140
219 199-206 234 184 89.114 150
244 224-231 260 210 89.114 165
273 251-257 305 240 114 190
323 301-310 348 284 114.127 220
406 382-388 440 364 127 255
457 433-439 488 413 140 340
508 484-490 538 464 140 385
558 534-540 590 514 140 440
610 586-592 642 566 140 485
660 636-642 694 615 168 540
711 687-693 745 665 168 590
762 738-744 798 716 168 640
863 839-845 900 815 168 685



Ps.: Others about Prodrill Equipment Co., Ltd
1. Prodrill Main Products as below:

1) Rock drill:
Handheld rock Drill (Jackhammer): Y10, Y18, Y20, Y24, Y26, TY24C, etc;
Airleg rock drill: YT24, YT28, etc;
Gasoline rock drill: YN27
2) Drill rod: Taper rod (hex. 22 * 108mm)
3) Drill bit: Taper button bit, Taper chisel bit, Taper cross bit; Thread button bit (Top hammer); DTH Hammer and DTH bit; Overburden Drilling System
4) Splitter: Handheld stone splitter (or shims and wedges or plug and feather), G10 pneumatic splitter; Hydraulic Splitter
5) Breaker: Hydraulic Breaker, Pneumatic Breaker G10, TPB, etc;
6) Splitting or Cracking Powder for Construction/ Quarry/ Rock: Expansive mortar Soundless Cracking Agent; High Range Soundless Cracking Agent

2. Advantages:
Compared the Rock Drilling Tools with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory

3. About Us:
1.    Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2.    We have advanced technology and equipment.
3.    Our technician has more than 13 year's professional working experience.
4.    Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
