Type: | Drilling Bit | Materials: | Tunsten Carbide , Diamond |
---|---|---|---|
Bit Type: | Matrix Body Pdc Drill Bits | Processing Type: | Forging |
Specific Use: | Oil /gas/water Well Drilling | Advantage: | Long Service Life, And Less Cost |

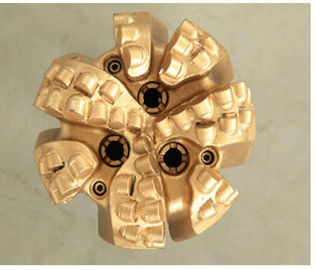

3-8 blades matrix body oil drilling pdc drill bit API standard
1. matrix body pdc drill bits Application:
1,Suit for drilling medium to medium-hard formations.
2,Evolute asymmetrical blade cutter design and balanced bit load so that bit whirl is prevented .
3,Composite gage protection and low torque design improve rate of penetration .
4,CFD hydraulic balance design results in better bit cleaning and cutting removal .
5,Combined utilization of high performance PDC compacts significantly prolongs bit life
2. matrix body pdc drill bit Description
1. Cutting structure is force balanced and bit blade is asymmetrically designed so that the load on bit is balanced that resulting better stability of the bit.
2. Main cutter are high performance PDC cutters to insure service life of the bit while improving ROP.
3. Cutter exposure is optimized to insure the bit can achieve higher ROP is soft to medium formations.
4. Shock absorbers are designed to make the bit capable of drilling through formations with hard strigers.
5. Hydraulic system of the bit is optimized using dynamic flow pattern simulation technology to enhance cleaning and cooling effects of the bit to effectively prevent bit from balling.
3. pdc drill bit Detail information
Bit type | Main bit size(mm) | Rock coefficient | |
PDC core drill bit | Single pipe | 75/54.5 94/74 113/89 113/109 153/129 | 1-18 |
Two-pipes | 75/54.5 94/68 | ||
PDC center drill bit | Concave 3 wing bit | 60 75 94 113 133 | 1-18 |
Arc pillar
|
60 75 94 113 133 | 4-18 | |
Many wing scraper | 60 75 94 113 133 133 153 173 190 215 | 1-6 | |
PDC Indexable drill bit | 153/94 153/113 190/153 190/113 | 1-18 |
Size (mm) | 118,152,215.9,244,311,445 |
Applicable | water well, oil field, construction, geothermal, directional boring, and underground foundation work |
Formation | sticky, soft, medium hard, hard formation |
Bearing | rubber seal or metal seal |
Packing | wooden box, steel box, or as your requirements |
Payment Term | T/T or L/C at sight |
MOQ | 1 Piece |
Supply Ability | 1000 Pieces/month |
Delivery Time |
within 7-15 work days
|
